Ballistic Rubber Panels

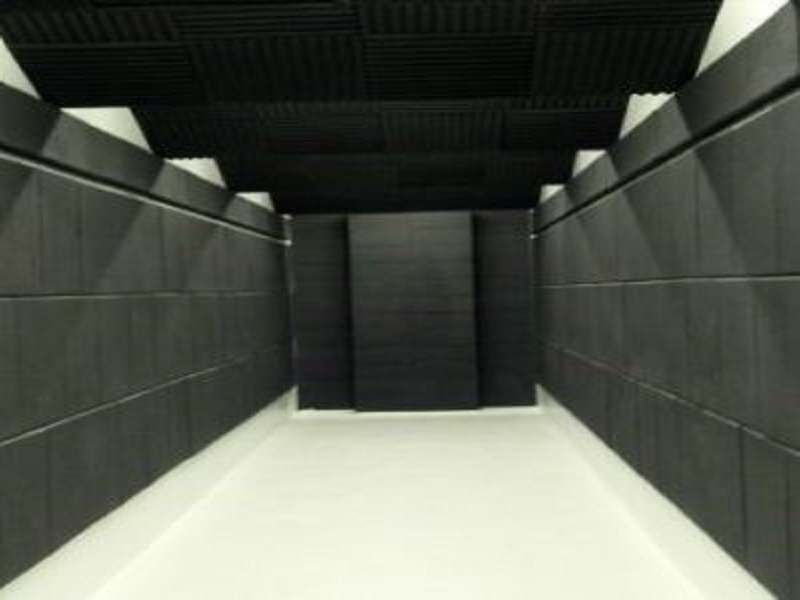

Ballistic Rubber Panels by Suha Sport provides state-of-the-art projectile containment across global export markets in 25 countries.Designed specifically to neutralize high-velocity threats and eliminate ricochet hazards in tactical training compounds, police academies, and municipal shooting ranges, the heavy-duty 500x500x75mm SBR Shooting Range Ballistic Rubber Panels
Advanced Ballistic Engineering and Multi-Layer Performance
Formulated meticulously from eco-friendly SBR elastomers, our specialized ballistic panels provide a robust, non-skid, and hygienic barrier designed specifically to withstand intense tactical loading when installed in dual-layer configurations:

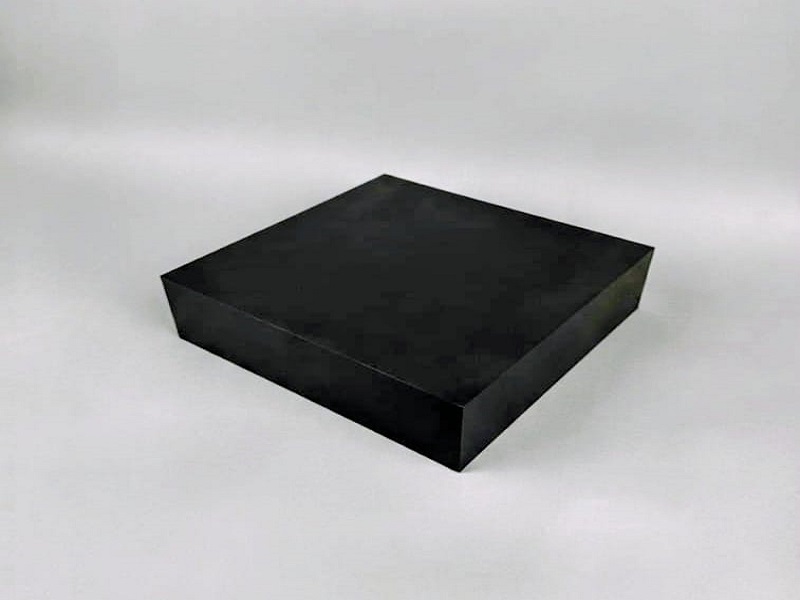

Precision Dimensions and Optimal Density: Manufactured in a high-coverage 500×500 mm footprint with a 75 mm thickness, weighing 20.625 kg per piece with a high-density profile of 1100 kg/m³ for maximum stability under heavy impact.

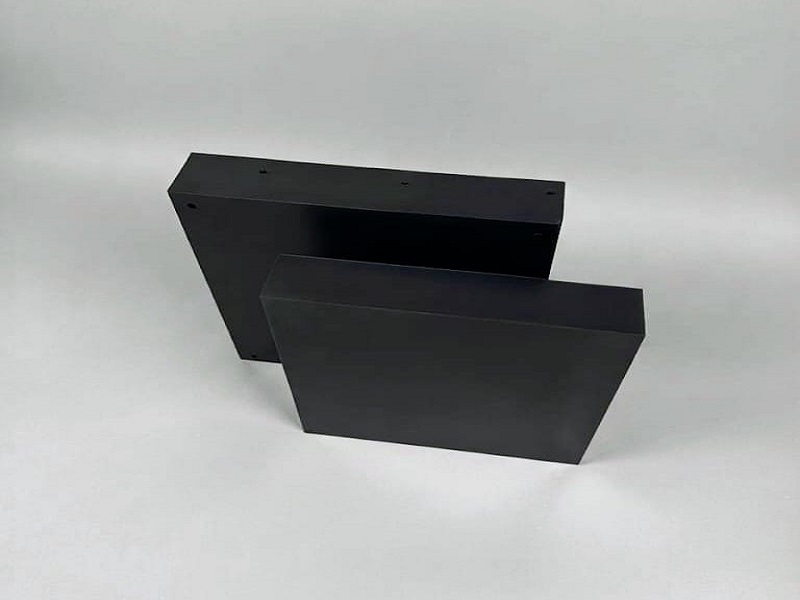

Tested Caliber Resistance (Dual-Layer Application): When installed by placing two products one after the other, these panels successfully pass rigorous impact tests against diverse calibers, including 5.6x15mm training hobby, 6.35x16mm micro pocket guns, 7.65x17mm classic compact, 9x19mm military/police defense, and 11.43x23mm military special forces.
Acoustic, Antimicrobial, and Stain-Resistant Qualities: Beyond superior projectile trapping, the dense rubber matrix significantly reduces ambient noise levels, resists stains, maintains antimicrobial properties, and meets stringent indoor air quality criteria.
Professional Installation Protocols and Substrate Requirements
Achieving maximum operational lifespan and absolute safety in shooting ranges requires rigorous sub-floor preparation, precise moisture testing, and professional bonding procedures:
Rigorous Substrate Preparation: Sub-floors must be structurally sound, completely clean, dry, and free from paint, oil, mold, sealers, or adhesive residues. Concrete surfaces should be shot-blasted or bead-blasted to open pores and remove contaminants.
Moisture and Environmental Control: Concrete substrates must maintain a moisture vapor emission rate under 5 lbs./1,000 sq. ft./24 hours (ASTM F 1869) and a relative humidity below 75% (TSE standards), with job-site environments regulated between 65ºF and 75ºF.
Adhesive Bonding and Verification: Prior to full installation, mandatory adhesive bond tests using recommended structural epoxy systems must be performed with a 72-hour curing window to guarantee permanent adhesion across concrete, wood, or treated metal substrates.
Functioning as an industry-leading direct manufacturer based in Turkey, we oversee every phase of our advanced production cycle—binding 100% anti-carcinogenic recycled SBR rubber granules and custom pigments with premium polyurethane matrices under controlled thermal-pressure curing. Backed by internationally recognized ISO, TÜV, and TSE certifications, each modular panel embodies our core manufacturing philosophy. Fulfilling our promise that “The champion’s floor, the signature of trust,” we cut out intermediaries to supply elite, certified ballistic protection systems directly from our factory floor to your high-security international installations.
